Siemens SIMODRIVE 611 Repair Cost (2026)

Repairing a Siemens SIMODRIVE 611 axis module or control card typically costs $500–$1,400 at our lab, quoted firm after a free bench evaluation. That covers the 6SN1123 power (LT) modules and the 6SN1118 closed-loop control cards that plug into them. Standard turnaround is 3–5 business days in lab, rush service adds $149, and every repair carries a 24-month warranty. Small infeed modules are evaluated case by case, and large infeed modules of 36 kW and above we decline outright — for a reason explained below.

If you are searching for "Siemens drive repair" with a machine down, that paragraph is probably what you came for. The rest of this page is the detail a maintenance manager needs to put a number on a requisition: what the range includes, what pushes a quote to the top of it, how to tell which of the two halves of a 611 axis has actually failed, and where repair stops making sense.

The price table

As of October 2026 this is how SIMODRIVE 611 work is priced at our lab. Everything on a 611 rack is quote-track rather than flat-price.

Module	Typical article numbers	Our position	Typical repair
Power (LT) module, axis	6SN1123-1AA00 series	Repaired — free evaluation, firm quote	$500–$1,400
Closed-loop control card	6SN1118 series	Repaired — free evaluation, firm quote	$500–$1,400
Power module with its control card fitted	6SN1123 + 6SN1118	Evaluated together, one quote	$500–$1,400 typical
Small infeed module	6SN1145 small frames	Case by case — ask before shipping	Quoted after evaluation
Large infeed / NE module	6SN1145, 36 kW and above	Not accepted	—
Rush service	Any accepted module	Add-on	+$149, 1–2 business days
Emergency bench attempt	Capacity confirmed first	Add-on	+$399, same / next business day

Three things to read into it. The evaluation is free and nothing proceeds past your written approval of the quote. "Typical" is the bulk of real jobs, not a cap: a power module that failed along with its control card after a motor short sits at the top of the band. And the two "not accepted" and "case by case" rows are there because we would rather lose the job than ship back the module that feeds your whole rack without having proved it.

What a 611 rack actually is

It helps to be exact about the hardware, because "the Siemens drive" on a machine tool is several separate modules bolted side by side.

A SIMODRIVE 611 system is modular. An infeed module at one end rectifies incoming three-phase power and supplies a shared DC link, either as a plain unregulated infeed or as an infeed/regenerative-feedback unit that returns braking energy to the line. To its right sit the power modules, one per axis or spindle — or one for two axes in the twin-axis version — each containing the IGBT output stage for its motor. And into the front of each power module slides a closed-loop control card, which is where the current, speed and position loops actually run. The modules share the DC link through bus bars across the top and talk to each other through a ribbon-cable equipment bus.

That split matters for cost, because the power module and its control card are separate assemblies with separate article numbers and separate failure modes. A dead axis can be either one. People routinely buy a replacement power module, slide the old control card into it, and find the fault has moved with the card.

Drive systems of this kind are standardised under the IEC 61800 series (iec.ch), and the 611's successor in Siemens' range is the SINAMICS S120 platform. The 611 itself is out of active production, which is the background to everything else on this page: for most owners there is no like-for-like new part to buy.

What moves the quote

Four variables decide where in the $500–$1,400 band a repair lands.

1. Power stage or electronics. A failed IGBT stage is the expensive end. A control-supply fault, a gate-drive component, a current sensor or a fan is the cheap end.
2. One axis or two. The twin-axis power modules carry two output stages. If both went, the work doubles.
3. Whether the control card went too. A motor or cable short frequently takes the power stage and then propagates into the control card through the current-detection and gate-drive interface. One quote, but a higher one.
4. Component scarcity. This is a long-discontinued platform. Most parts remain obtainable; a few need sourcing, and sourcing costs time and money.

One thing that is not a cost: on digital 611 systems driven by a SINUMERIK control, the drive machine data lives in the control and is loaded to the drive at boot, so a repaired power module or control card goes back in without a commissioning exercise. On a stand-alone 611 universal the parameters are stored on the control card itself — which is exactly why you ship the card fitted and tell us it is the only copy.

"On a 611 rack the control card is its own failure. I have seen shops throw two power modules at an axis before anyone thought to swap the card across from the next slot. That one test is free and it tells you which half you are paying to fix."

— Machine tool service engineer, 23 years, SINUMERIK-controlled grinders and lathes; name withheld by request

Find out which half failed before you ship

A plant electrician can narrow a 611 fault considerably with the cabinet locked out.

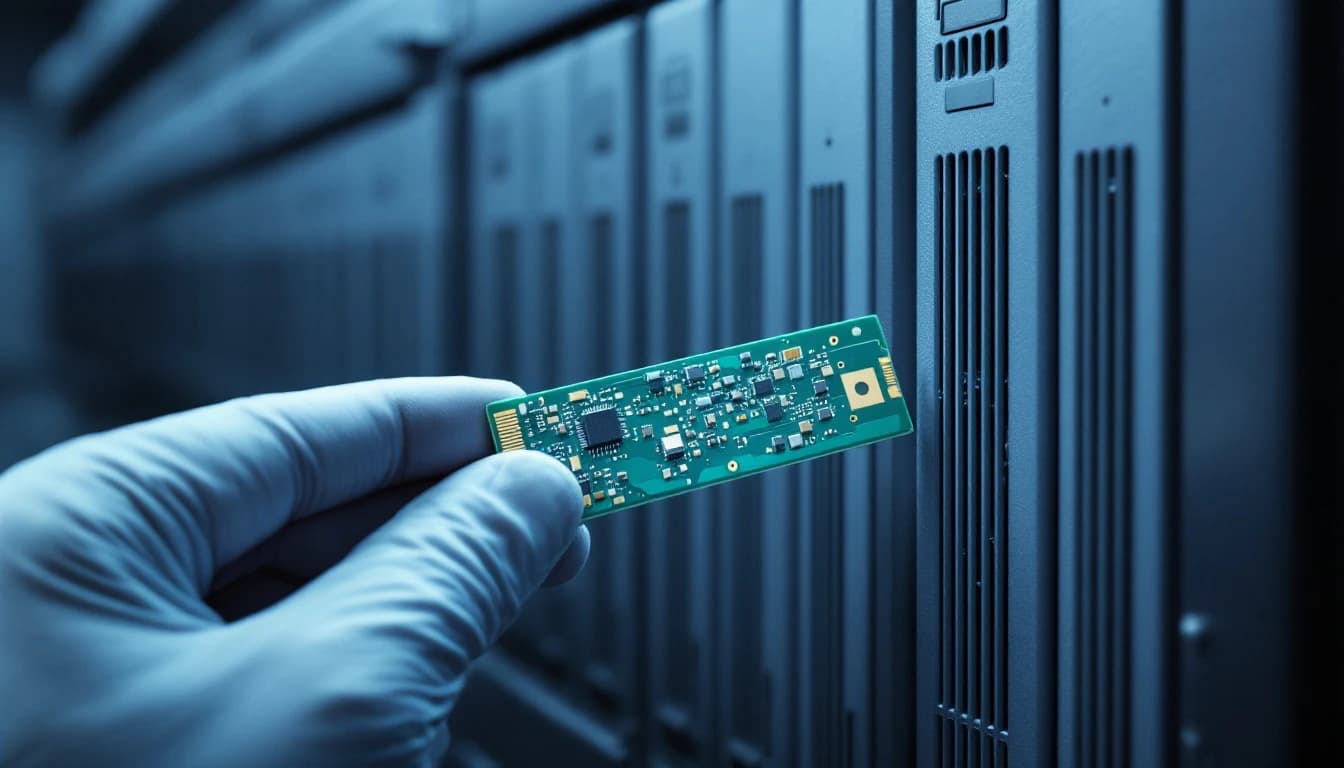

Swap control cards between identical axes. If two axes use the same power module and control card type, exchange the cards. If the fault follows the card, the card is at fault; if it stays with the slot, the power module or that axis's motor and cable is. Record which card came from which slot first, and on analog or stand-alone units confirm the settings match before you power up.

Megger the motor and cable with the leads off the drive. An insulation fault will destroy a freshly repaired output stage on the first enable. The test voltage must never reach the module, so disconnect at the drive terminals.

Read the infeed module's LEDs. The infeed carries a small block of indicators for its own electronics supplies, for missing enable signals, for DC link status, and for line and DC link overvoltage faults. If the infeed is not reporting a ready DC link, no axis module will run, and the axis faults you are chasing are symptoms. Confirm the exact LED meanings in the Siemens configuration manual for your infeed type.

Note the alarm exactly. On a SINUMERIK-controlled machine, 611 digital drive faults appear on the control as six-digit alarms in the 300000 range, with the axis named. Alarms in the family of current monitoring, heat sink temperature, measuring-circuit errors and controller-at-limit each point in a different direction — a measuring-circuit alarm is an encoder or cable far more often than a module. Send the number with the unit.

Check the equipment bus ribbon and the DC link bars. A ribbon cable that has been bent once too often and a bus bar screw that was never torqued account for more "intermittent drive faults" than anyone likes to admit.

None of that is done live. DC link capacitors stay charged after the disconnect opens; the product safety standard for these drives requires a warning label where stored charge takes longer than 5 seconds to fall below 60 V, and the 611's label states the wait. Observe it, then prove the link dead with a meter. OSHA estimates that compliance with its control-of-hazardous-energy standard (osha.gov) prevents around 120 fatalities and 50,000 injuries a year, and NFPA 70E (nfpa.org) sets the arc-flash boundary at an incident energy of 1.2 cal/cm². Machine electrical equipment of this kind is covered by NFPA 79, and the lockout is not optional because the machine is expensive.

Why we decline the large infeed modules

This is the part most repair pages leave out, so here it is plainly.

A large SIMODRIVE infeed or NE module — 36 kW and above — cannot be honestly proved on a bench that does not have matching three-phase source and load capacity. We can replace components in one. What we cannot do is run it at the power it will see in your machine, and an infeed that passes a low-power check and then fails under a spindle acceleration takes the whole rack down with it.

So we do not take them. Axis power modules and control cards from the same rack are fully serviceable, and those we verify. If the infeed is your failed module, we will tell you what your options are rather than sell you a repair we cannot stand behind. Smaller infeed frames are a conversation: tell us the article number before you ship.

Repair against the alternatives

Used modules. The surplus market for 611 parts is active because the installed base is large. Reported used pricing on a common 6SN1123 single-axis power module ranges from very low to several hundred dollars, and on large infeed modules into the low thousands. What that market does not supply is history or a meaningful warranty: a used module of this age has the same aged electrolytics as the one that just failed, and the rule of thumb is that every 10 °C of sustained temperature rise roughly halves electrolytic capacitor life. A used module makes a good bridge. Fit it, send yours for repair, and keep the repaired original as your tested spare.

Retrofit to a current platform. Replacing a 611 rack means new drives, usually new motors or encoder adaptation, and very often a new control, because the drive and the control were designed as a pair. That is a capital project measured in weeks and it is the right answer for a machine that is worn out mechanically. For a sound machine it is a great deal of money spent to fix one module. The arithmetic is in repair vs. replace: the actual math.

Do nothing and wait for a part. With a discontinued platform this is how a two-day outage becomes a three-week one.

Against all of them, downtime is the dominant number. NIST research on manufacturing maintenance (nist.gov) put U.S. machinery maintenance spending at roughly $50 billion a year in its industry study, and federal producer price data for machinery (bls.gov) shows the replacement side of the ledger rising faster than the general index. Capital spending commitments tracked by the Census Bureau (census.gov) are the reason a surprise retrofit rarely has a budget line waiting for it.

What the repair includes

For an accepted power module or control card: an incoming test against the reported fault, IGBT and power-stage replacement where the stage has failed, component-level repair of the control card, and a full recap as standard rather than replacing only the part that failed. Every repair carries the 24-month warranty.

If the evaluation shows the module is healthy and the fault is in the motor, the encoder or the cabling, we tell you so and the evaluation costs nothing.

For the cost picture across other servo brands see servo amplifier repair cost. If the same machine has a Siemens operator panel that is also ageing, Siemens 6AV part numbers explained covers that side. Our servo drive repair page lists every drive family we take. When you are ready, request a quote with the article number from the module label and the alarm, and pack it using how to pack industrial electronics for shipping — a control card left loose in a box arrives as a second repair.

Frequently asked questions

How much does Siemens SIMODRIVE 611 repair cost?

Typical SIMODRIVE 611 repairs run $500–$1,400 for 6SN1123 axis power modules and 6SN1118 control cards. The bench evaluation is free and the quote is firm before any work. A fan, control-supply or gate-drive repair sits at the low end; a full power-stage replacement with control-card damage sits at the high end.

Is it the power module or the control card that has failed?

Either can fail independently, and the fastest way to find out is to swap control cards between two identical axes. If the fault moves with the card, the card is at fault. If it stays with the slot, suspect the power module, or that axis's motor and cable. Ship the module with the card fitted and we evaluate both together.

Do you repair SIMODRIVE 611 infeed modules?

Small infeed frames are evaluated case by case, so tell us the article number first. Large infeed and NE modules of 36 kW and above we do not accept, because proving that repair needs three-phase source and load capacity our bench does not have. We would rather decline than return an under-tested module that feeds your entire rack.

Will I have to recommission the drive after repair?

Usually not. On digital 611 systems under a SINUMERIK control the drive data is held in the control and loaded at boot, so the repaired module runs on existing data. On a stand-alone 611 universal the parameters are stored on the control card, so back them up first and tell us if the card holds the only copy.

Is the SIMODRIVE 611 obsolete?

Yes, in practical terms. The 611 is out of active production and its successor in the Siemens range is the SINAMICS S120 platform, which is a different drive with different motors and control interfaces. Check Siemens' current lifecycle notice for spare-part status on your exact article number; for most owners, repair or surplus are the realistic options.

How long does a SIMODRIVE repair take?

Standard turnaround is 3–5 business days in lab once the module arrives, plus shipping each way. Rush service is $149 for 1–2 business days in lab, and emergency service is $399 for a same or next business day bench attempt — contact us first to confirm bench availability.

Should I buy a used 611 module instead of repairing mine?

As a bridge, yes; as a fix, be careful. A used module gets the machine running quickly, but it is the same age as the one that failed and usually carries little or no warranty. The better use of surplus is to install it, repair your original with a 24-month warranty, and keep the repaired unit as a proven spare.
